Introducing guidenav's Fiber Optic Gyroscope
Premium Fiber Optic Gyroscope (FOG)
15,000+ Systems in Operation in 35+ Countries
Custom Solutions Trusted by Global Key Players
When your mission requires the highest level of precision and stability, GuideNav’s Fiber Optic Gyroscope (FOG) is the solution you can rely on. Engineered to perform in the most demanding conditions, our FOG gyroscopes deliver the accuracy your critical applications need, ensuring consistent performance every time.
FIber optic Gyroscopes COVer all your applications

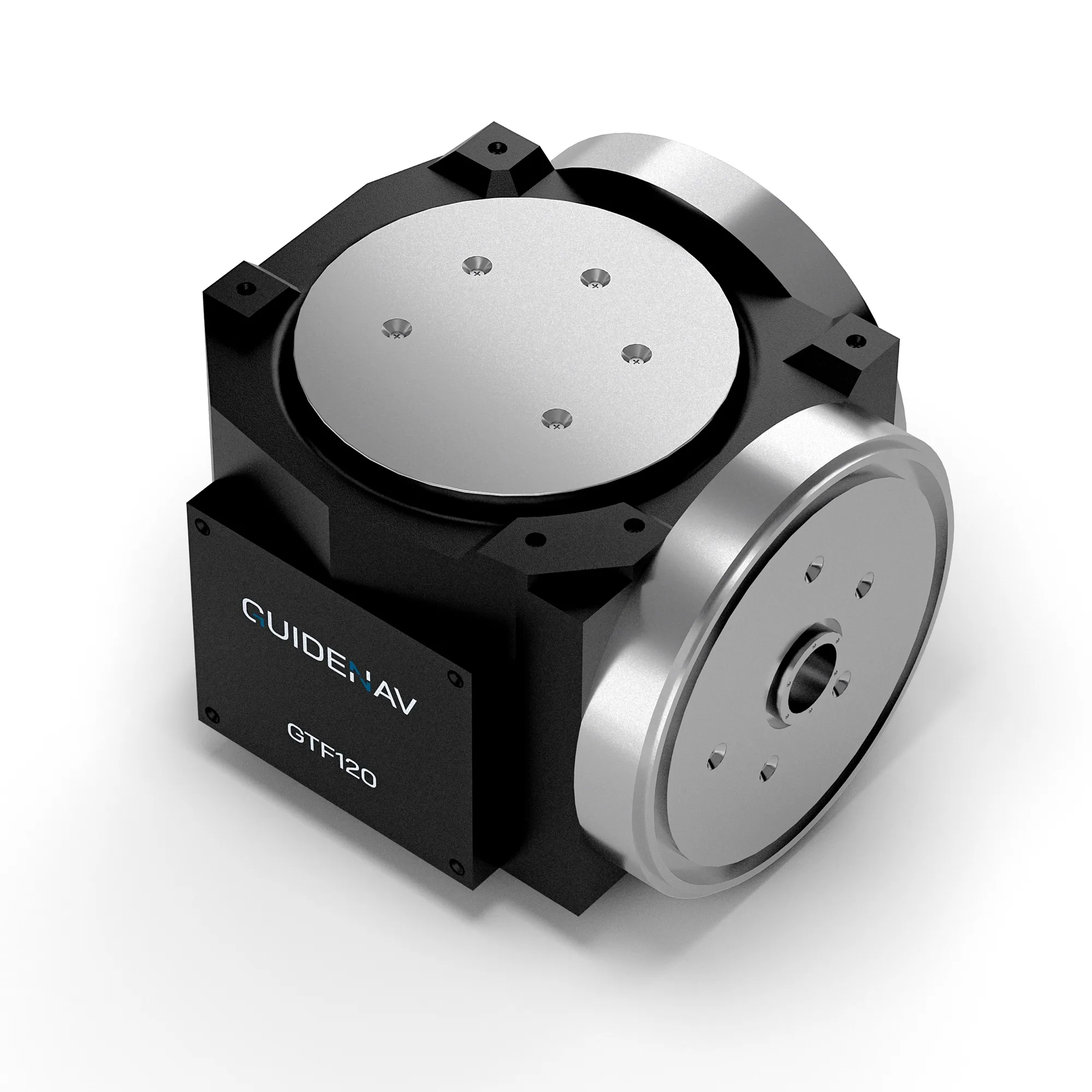

Introducing GuideNav's Featured
Fiber Optic Gyroscope
At GuideNav, we know that your industry demands nothing short of excellence. That’s why our Fiber Optic Gyroscope (FOG) are designed with versatility and precision in mind. Whether you’re working in aerospace, defense, or industrial sectors, we offer FOG solutions that cater to your specific needs, delivering the exact level of accuracy and stability required for your applications.
With GuideNav, you’re not just choosing a product—you’re choosing a customized solution tailored to the challenges of your industry.
Cost-effective
Bias stability ≤0.2°/h
Gyro angular random walk：0.02°/√hr
± 500 °/s range
Interface: RS422
Cost-effective
Bias stability ≤0.1°/h
Gyro angular random walk：0.01°/√hr
± 500 °/s range
Interface: RS422
High Precision
Bias stability ≤0.05°/h
Gyro angular random walk：0.003°/√hr
± 500 °/s range
Interface: RS422
Ultra High Precision
Bias stability ≤0.001°/h
Gyro angular random walk：0.0003°/√hr
± 500 °/s range
Interface: RS422
Let's Talk About Your Project
Your project deserves a solution tailored to your exact specifications. To ensure we provide the best FOG Gyroscope for your needs, we invite you to share the specific parameters and performance requirements of your application. Whether it’s precision, stability, or size constraints, our team is ready to help you find the perfect fit.
Table of Contents
Download this page as a PDF
To save you time, we have also prepared a PDF version containing all the contents of this page, only leave your email and you will get the download link immediately.
Introduction of FOG Gyroscope
What is Fiber Optic Gyroscope ?
A Fiber Optic Gyroscope (FOG) is a highly precise and reliable device used to measure angular velocity, playing a crucial role in navigation and stabilization systems across various high-stakes applications. Unlike traditional gyroscopes, a FOG uses the principles of light transmission within optical fibers to detect rotational changes, ensuring superior accuracy and stability.
Fiber optic gyroscopes are renowned for their ability to deliver consistent, high-precision measurements, even in the most challenging conditions, making them a key component in advanced navigation and control systems.
Introduction of FOG Gyroscope

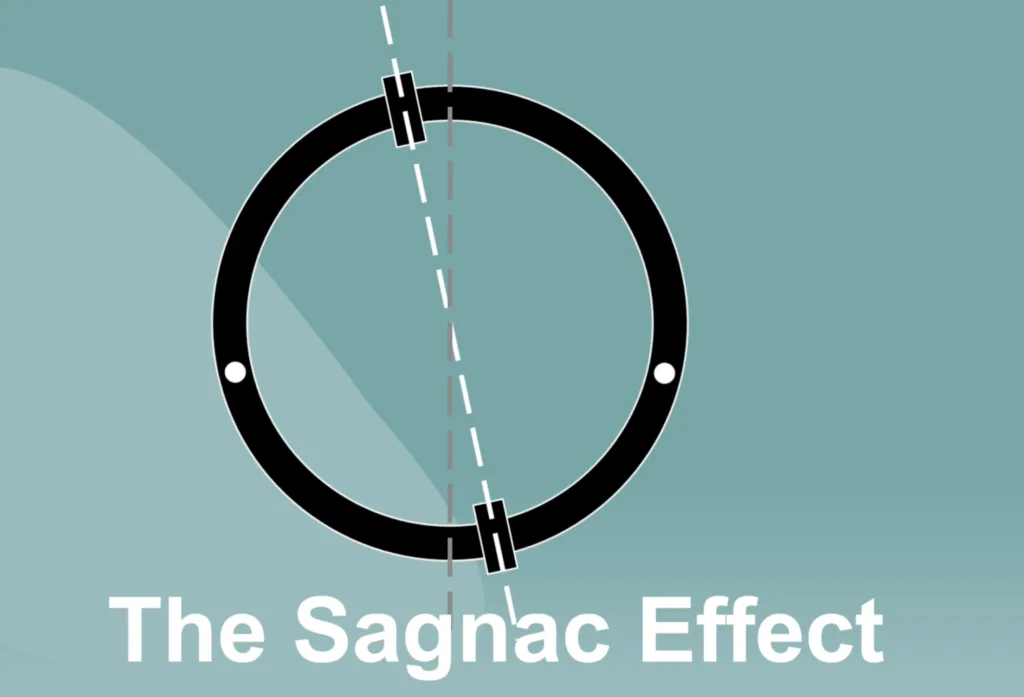

How Does a Fiber Optic Gyroscope (FOG) Work?
A Fiber Optic Gyroscope (FOG) measures angular velocity by utilizing the principles of light and the Sagnac effect. Here’s a simplified explanation of how it works:
- Light Source: A laser or LED generates a beam of light, which is split into two beams traveling in opposite directions within a coil of optical fiber.
- Sagnac Effect: When the gyroscope rotates, the rotation causes a slight time difference between the two light beams due to the change in their travel paths. This is called the Sagnac effect.
- Interference Detection: The two beams are recombined, and the interference pattern created is analyzed to measure the phase shift caused by rotation. This phase shift is directly proportional to the angular velocity.
- High Precision: The absence of moving parts and the use of optical components ensure ultra-high precision, reliability, and durability in extreme environments.
Key Features of guidenav's FIber optics gyroscope
Key Features of Fiber Optic Gyroscope
Exceptional Precision & Stability
Feature
Fiber optic gyroscope leverages the Sagnac effect and fiber optic interference to achieve extremely high angular velocity measurement accuracy.
Advantage
This level of precision makes fiber optic gyro unparalleled in high-accuracy inertial navigation and attitude control applications, particularly in fields such as aerospace, marine navigation, and military missile guidance.
Ultra-Low Drift Rate
Feature
FOG exhibits an exceptionally low drift rate, ensuring minimal error accumulation over extended operation periods.
Advantage
The low drift characteristic makes fiber optic gyroscopes ideal for long-duration, high-precision applications like submarine navigation and inertial navigation systems (INS), ensuring long-term stability and reliability of navigation data.
No Moving Mechanical Parts
Feature
All GuideNav‘s fiber optic gyroscopes are operated based on fiber optic interference, eliminating the need for any moving mechanical parts.
Advantage
The absence of mechanical wear or moving components results in exceptionally high reliability and durability, reducing maintenance requirements and enhancing the overall lifespan and performance stability of the system.
High EMI Resistance
Feature
FOG gyros are highly resistant to electromagnetic interference, maintaining stable operation even in complex electromagnetic environments.
Advantage
This feature makes FOGs highly effective in military and industrial applications, where reliable accuracy and performance in high-interference environments are crucial, making them ideal for critical mission navigation and control systems.
Introduction of FOG Gyroscope
1-Axis vs. 3-Axis
Fiber Optic Gyroscope: Which to Choose?
Fiber Optic Gyroscopes (FOGs) are available in 1-axis and 3-axis configurations, each suited for specific applications. While 1-axis FOGs are ideal for systems requiring single-axis stabilization or rotation detection, 3-axis FOGs provide comprehensive angular velocity measurements for advanced navigation and motion tracking.
- 1-Axis FOG: Ideal for simple systems requiring stabilization or single-axis rotation detection, such as antenna pointing or platform stabilization.
- 3-Axis FOG: Best for complex applications requiring complete angular motion tracking, such as navigation for UAVs, missiles, or submarines.
GuideNav provides both 1-axis and 3-axis Fiber Optic Gyroscopes, delivering high precision and reliability for various industries. Contact us today to find the best solution for your specific project.
| Feature | 1-Axis Fiber Optic Gyroscope | 3-Axis Fiber Optic Gyroscope |
|---|---|---|
| Functionality | Measures rotational movement along a single axis. | Measures rotational movement across all three axes (X, Y, Z). |
| Applications | Suitable for stabilization systems like antennas, turrets, or cameras. | Ideal for navigation systems in UAVs, missiles, tanks, and submarines. |
| Complexity | Simple design, easy to integrate into systems with limited rotational dynamics. | Comprehensive solution for systems requiring full 3D rotational data. |
| Cost | Lower cost, suitable for systems with less demanding requirements. | Higher cost, but provides full rotational measurement capability. |
| Advantages | Compact, lightweight, and cost-effective for single-axis needs. | Eliminates the need for multiple single-axis gyroscopes, offering full motion profile in one unit. |
Compare fiber optic gyroscope with MEMS gyroscope
FIBER OPTIC vs MEMS GYROSCOPE
Which is Better ?
MEMS Gyroscope: With advancements in technology, MEMS gyroscopes have achieved accuracy levels comparable to mid-range FOG gyroscopes in many scenarios. Their strengths lie in miniaturization, low power consumption, and varied production costs, making them widely applicable in consumer electronics, drones, military equipment, industrial automation, and automotive electronics.
Fiber Optic Gyroscope: Fiber optic gyroscope remain the preferred choice for high-precision applications, especially in scenarios requiring long-term stability, such as aerospace, precision navigation, and defense. Despite their larger size and higher cost, FOG excel in performance under extreme environmental conditions.
| Feature | MEMS Gyroscope | Fiber Optic Gyroscope |
|---|---|---|
| Operating Principle | Measures angular velocity through micro-mechanical structures in MEMS technology | Measures angular velocity based on the Sagnac effect in fiber optic interference |
| Accuracy | Wide range of accuracy; some high-end MEMS gyroscopes have achieved comparable accuracy to mid-level FOG gyroscopes | High accuracy, ideal for demanding navigation and control applications, especially with long-term stability |
| Drift Rate | Drift rate has significantly improved with technological advancements; some high-end models can rival FOG gyroscopes | Typically features very low drift rate, suitable for long-term continuous operation |
| Size and Weight | Compact and lightweight, ideal for space-constrained applications, widely used in portable devices and military applications | Larger and heavier, suitable for high-precision applications where space and weight are not constraints |
| Power Consumption | Low power consumption, ideal for battery-powered portable devices and long-duration missions | Higher power consumption, suitable for systems where power requirements are not a major concern |
| Cost | Varies from low to medium cost, suitable for large-scale consumer, industrial, and military applications | Higher production cost, suited for high-end applications |
| Resistance to Interference | Resistance to interference has improved with design and packaging advancements; most MEMS gyroscopes now offer good resistance to electromagnetic interference | Insensitive to electromagnetic interference, ideal for complex electromagnetic environments |
| Temperature Stability | With temperature compensation techniques, many high-end MEMS gyroscopes perform stably across a wide range of temperatures | Excellent temperature stability, suitable for extreme environments |
| Applications | Widely used in consumer electronics, drones, military equipment, industrial automation, automotive electronics, and more | High-precision navigation, aerospace, marine, defense, and other high-end applications |
Manufacturing Process of Fiber optic gyroscope
Manufacturing Process of Fiber Optic Gyroscope
01
STEP 1 :Customer Requirement Analysis and Design
Define Specifications: Collaborate with the customer to define key performance parameters such as drift rate, noise density, temperature stability, and sensitivity. Based on these requirements, design the optical system, including the fiber coils and associated electronics, and validate the design through simulations to ensure it meets the desired performance.
02
STPE 2 ：Optical Fiber Coil Winding
Precision Winding: Wind the optical fiber onto a spool with high precision, maintaining consistent tension and alignment to ensure optimal performance of the Sagnac effect. This step is critical for achieving the desired sensitivity and stability as specified by the customer.
03
STPE 3 ：Optical Component Integration
Component Assembly: Integrate the wound fiber coil with other optical components, such as light sources, beam splitters, and photodetectors, along with the electronic control systems. Ensure that the integration process meets the specified performance parameters for accuracy and reliability.
04
STPE 4 ：Packaging
Encapsulation: Encapsulate the entire optical assembly in a protective housing, providing environmental sealing and mechanical protection. This step ensures the gyroscope's stability and durability under various environmental conditions, in line with customer requirements.
05
STEP 5 :Calibration and Testing
Calibration: Conduct precise calibration to adjust and verify the gyroscope’s key performance parameters. Perform comprehensive functional and environmental testing to ensure that the final product meets the customer’s specifications and operates reliably in the intended application environment.
How to select FOG Step by step
How to Select the Right
Fiber Optic Gyroscope
STEP 1
Define the Application
Identify the specific application for the Fiber Optic Gyroscope (FOG). Ensure that the chosen FOG meets the environmental and operational demands of your application, such as harsh environments or high-precision needs.
STEP 2
Evaluate Accuracy Requirements
Determine the required level of accuracy, including factors like bias stability, scale factor accuracy, and the resolution necessary for your application. FOGs are typically chosen for their high precision in demanding scenarios.
STEP 3
Consider Drift Rate and Temperature Stability
Evaluate the drift rate and temperature stability of the FOG. These factors are critical for applications that require long-term stability and consistent performance across varying temperatures.
STEP 4
Assess Size and Integration
Consider the physical size and integration requirements of the FOG, ensuring it fits within the space constraints of your system. Also, assess how easily it can be integrated with your existing hardware and software.
STEP 5
Validate System Compatibility
Ensure that the FOG is compatible with your system’s interfaces, power supply, and data processing units. Compatibility with your existing protocols and infrastructure is crucial for seamless integration.
STEP 6
Validation and Performance Testing
Perform rigorous validation and performance testing, including assessments of dynamic response, noise levels, and resistance to external interferences. This step confirms that the selected FOG meets your application’s performance criteria under real-world conditions.
Trusted by keyplayers
Our advanced Fiber Optic Gyroscopes are trusted by leading organizations in the aerospace, defense, commercial, and industrial sectors from over 25 countries. Our reputation for reliability and precision sets us apart.
Top Performance
Our products deliver top-tier performance with excellent bias stability. Designed for the most demanding applications, they ensure precise navigation and control.
Proven in Harsh Environment
Our solutions are built to withstand extreme conditions, providing consistent performance in harsh environments. The typical working temperature with our inertial navigation sensors and systems are -40℃～+60℃
Excellent Performance under Vibrations
Our technology excels in high-vibration settings, ensuring accuracy and stability even in the most challenging operational environments.
PLUG & PLAY System
Our systems are designed for easy integration, offering plug-and-play solutions that simplify installation and reduce setup time, allowing you to focus on your mission.
ITAR-FREE
Our products are ITAR-free, offering you the advantage of easier international transactions and fewer regulatory hurdles. Choose GuideNav for seamless global operations.
Our Factory - See to Believe
Why Choose Us
Comprehensive Solutions for All Your Navigation Needs
Commercial Grade Coverage
Bias Stability: >0.2°/h
Solution: MEMS based Gyroscope/IMU/INS
Applications: car navigation, unmanned aerial vehicles, transportation, robotics etc.
Tactical Grade Coverage
Bias Stability: 0.05°/h-0.2°/h
Solution: Fiber Optics and MEMS based Gyroscope/IMU/INS
Applications: armored vehicles operations, anti-aircraft artillery, precision targeting etc.
Navigation Grade Coverage
Bias Stability: ≤0.05°/h
Solution: Fiber Optics & Ring Laser Gyroscope/IMU/INS
Applications: medium and long-range guidance, military aviation, satellites
